2022 Range Lite | 282RL
2022 Range Lite
Previous model years are dealer stock only.

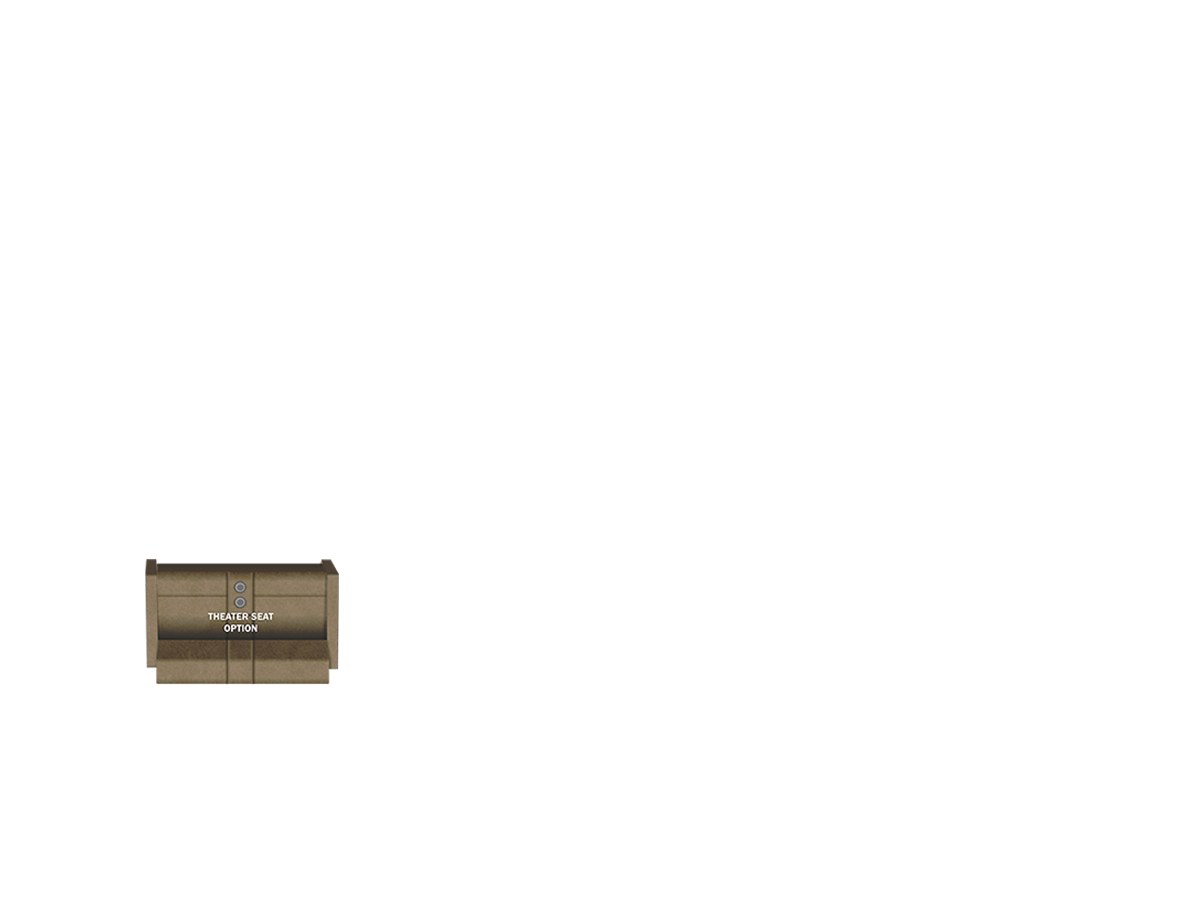

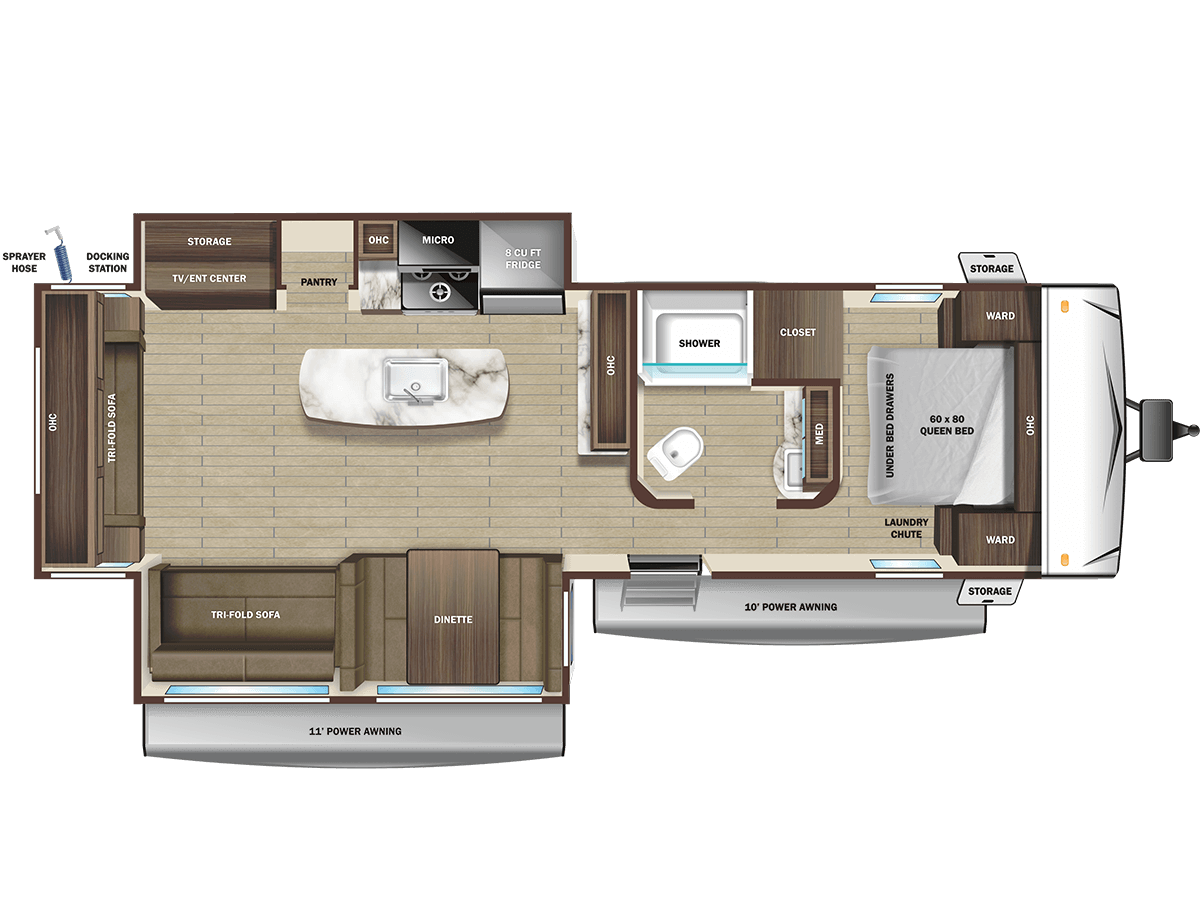

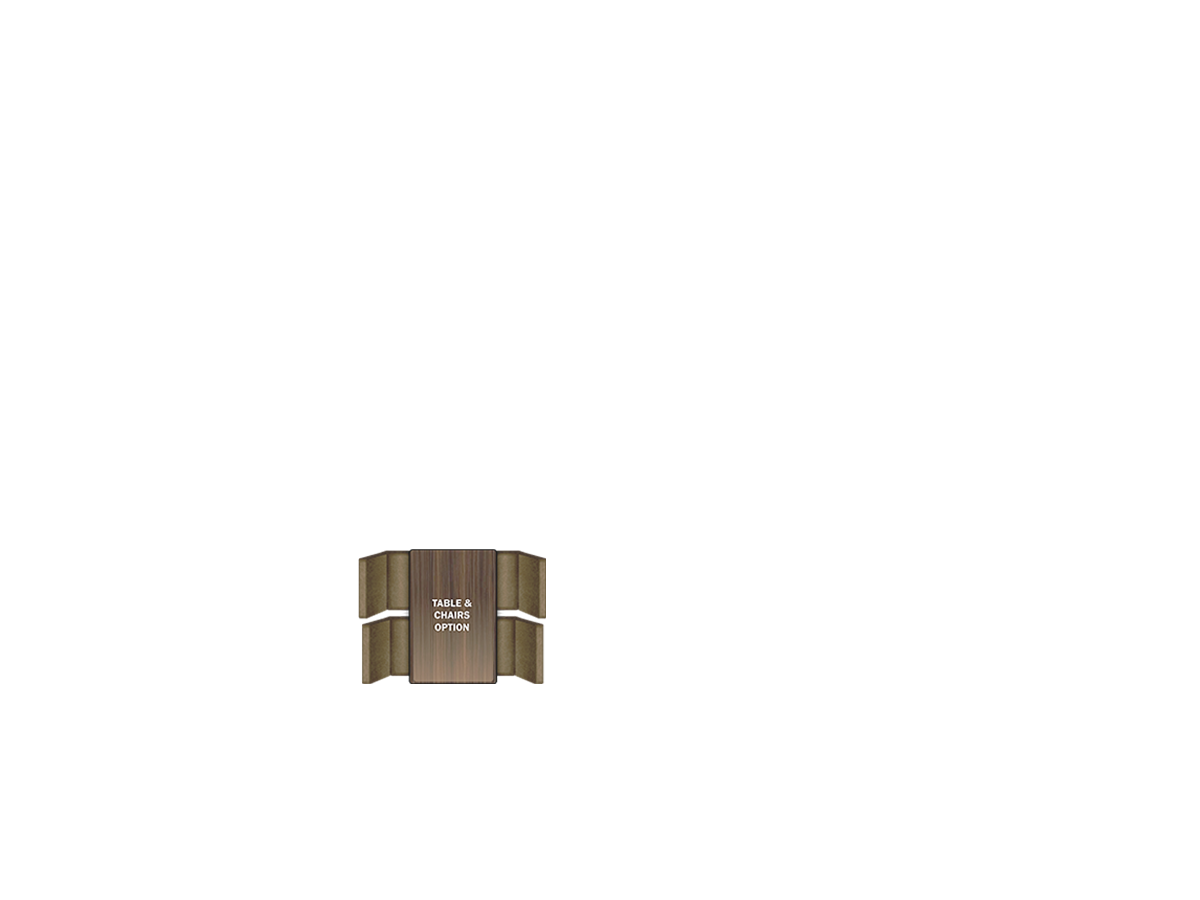

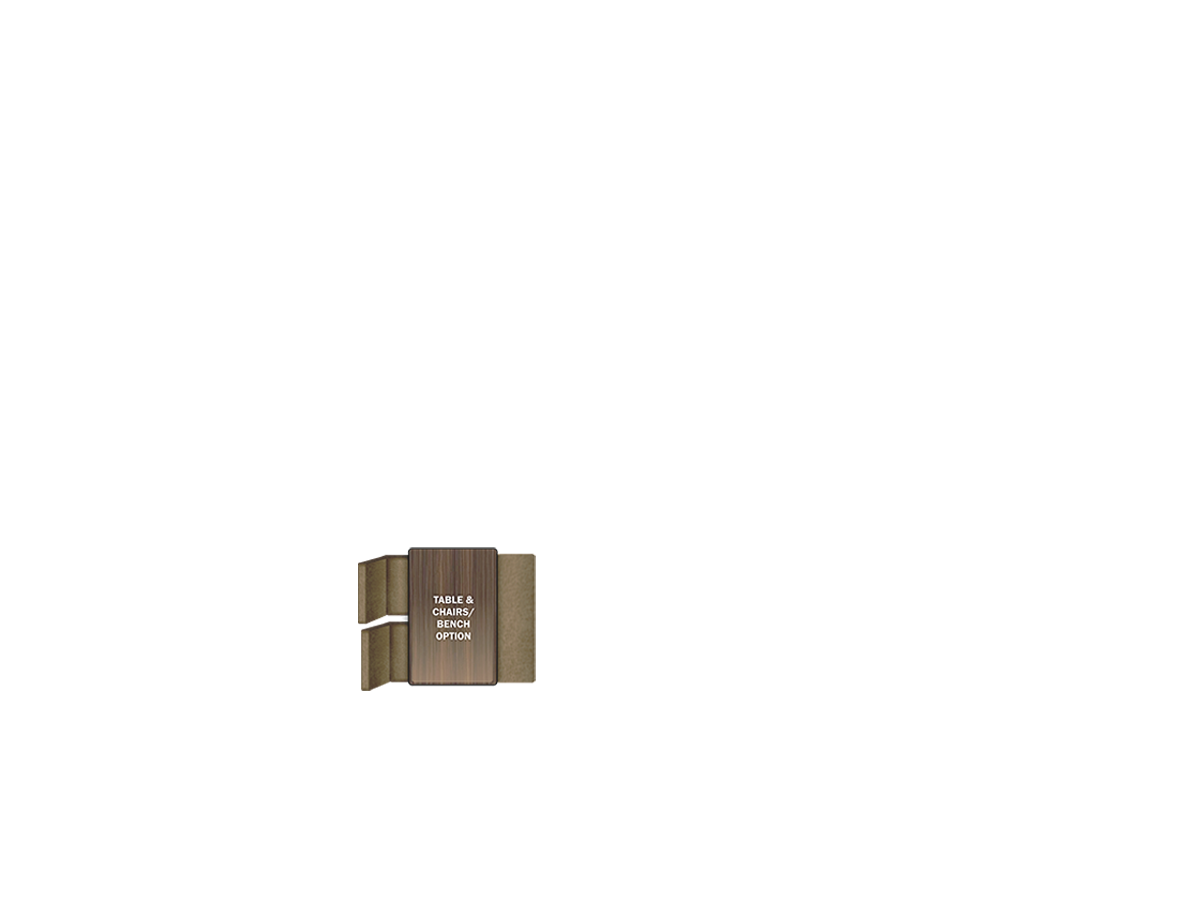

See Floorplan with
an Option Added:
See Floorplan with
Interior Design
Cascade Ivory
Specifications
Weights
| Dry Hitch Weight (lbs) | 880 |
| Unloaded Vehicle Weight (lbs) | 6,935 |
| Cargo Carrying Capacity (lbs) | 1,565 |
| Gross Vehicle Weight Rating (lbs) | 8,500 |
Measurements
| Exterior Length (overall) | 34' 2" |
| Exterior Height | 10' 8" |
| Exterior Height (with A/C) | 11' 3" |
| Exterior Width | 8' 1" |
| Exterior Width (with slides out) | 13' 0" |
| Interior Height (main) | 6' 9" |
| Awning Length | 10' 0" |
Tank Capacities
| Fresh Water Capacity (gals) | 45.0 |
| Gray Water Capacity (gals) | 58.0 |
| Black Tank Capacity (gals) | 29.0 |
| Propane Unit (lbs) | 60 |
Miscellaneous
| Sleeps | up to 8 |
| Water Heater | 6 |
| # of outside storage compartments | 2 |
| Tire Size | ST225/75R15'E |
