2022 Range Lite | 281BH
2022 Range Lite
Previous model years are dealer stock only.
See Floorplan with
an Option Added:
![281BH](/uploads/rvs/floorplans/933-281BH.png)
![Table and chairs](/uploads/rvs/overlays/131-overlay-281BH-table-chairs.png)

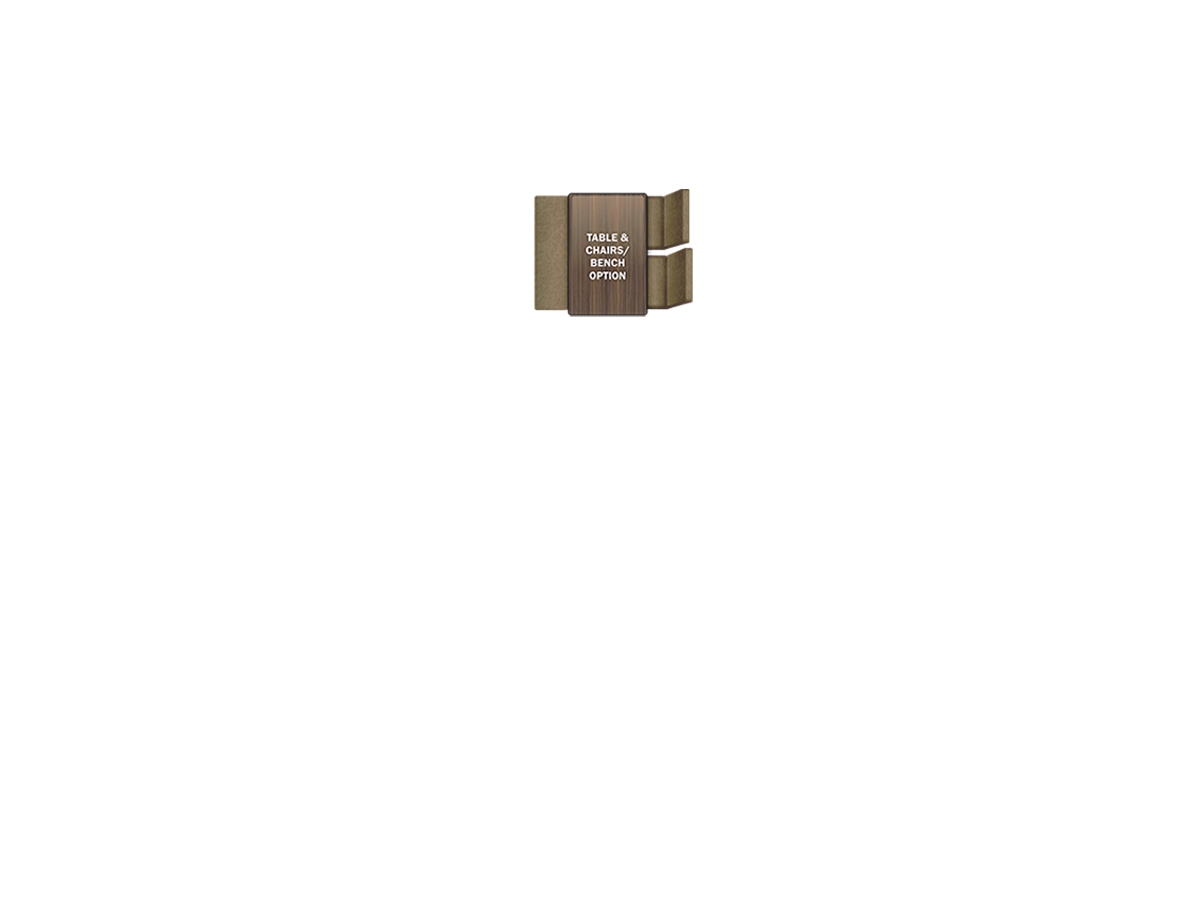

![Table, chairs and bench](/uploads/rvs/overlays/132-overlay-281BH-table-chairs-bench.png)

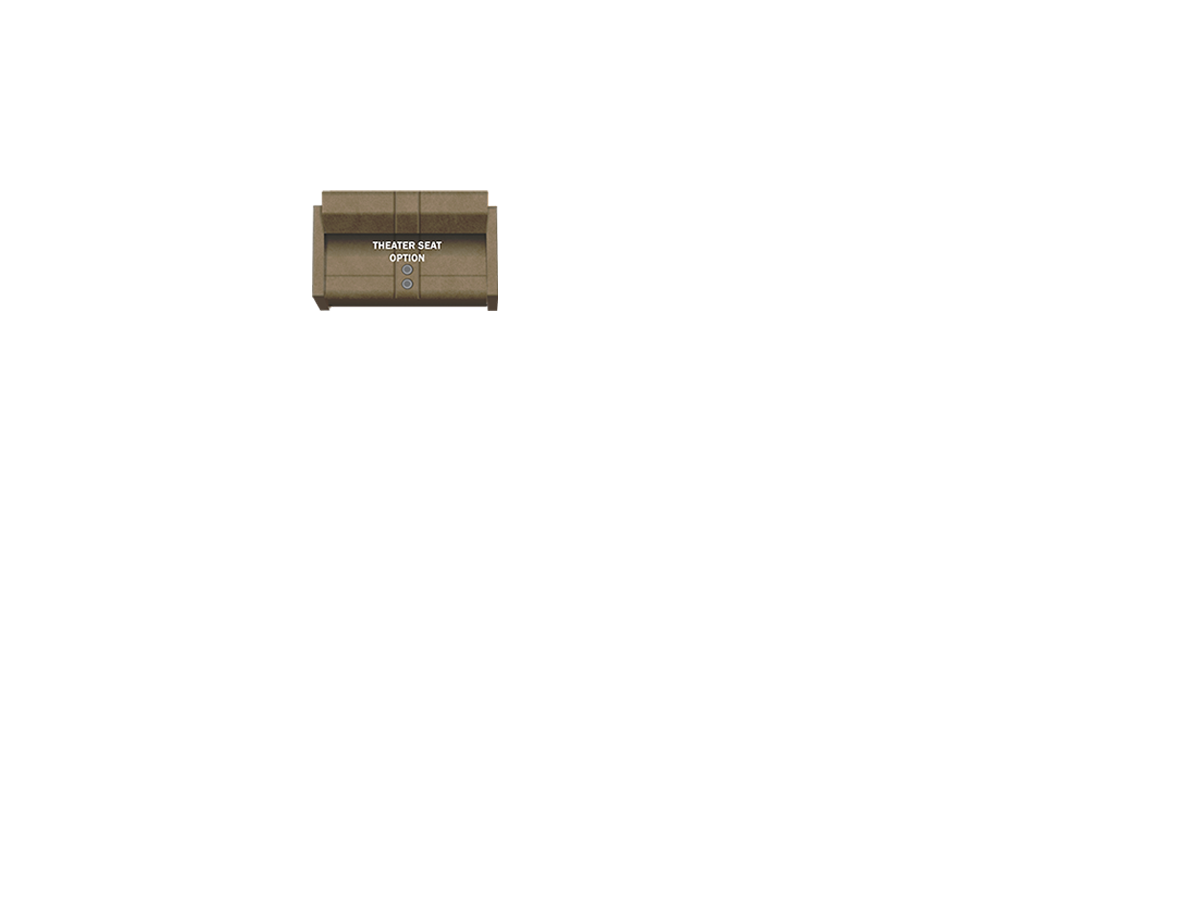

![Theater seating](/uploads/rvs/overlays/133-overlay-281BH-theater-seat.png)
Dry Hitch Weight (lbs) | 750 |
Unloaded Vehicle Weight (lbs) | 6,485 |
Cargo Carrying Capacity (lbs) | 1,765 |
Gross Vehicle Weight Rating (lbs) | 8,250 |
Exterior Length (overall) | 33' 0" |
Exterior Height | 10' 7" |
Exterior Height (with A/C) | 11' 3" |
Exterior Width | 8' 1" |
Exterior Width (with slides out) | 11' 3" |
Interior Height (main) | 6' 9" |
Awning Length | 20' 0" |
Fresh Water Capacity (gals) | 45.0 |
Gray Water Capacity (gals) | 58.0 |
Black Tank Capacity (gals) | 29.0 |
Propane Unit (lbs) | 60 |
Sleeps | up to 10 |
Water Heater | 6 |
# of outside storage compartments | 2 |
Tire Size | ST225/75R15'E |
