2022 Mesa Ridge S-Lite Travel Trailers | 261BH
2022 Mesa Ridge S-Lite Travel Trailers
Previous model years are dealer stock only.
See Floorplan with
an Option Added:

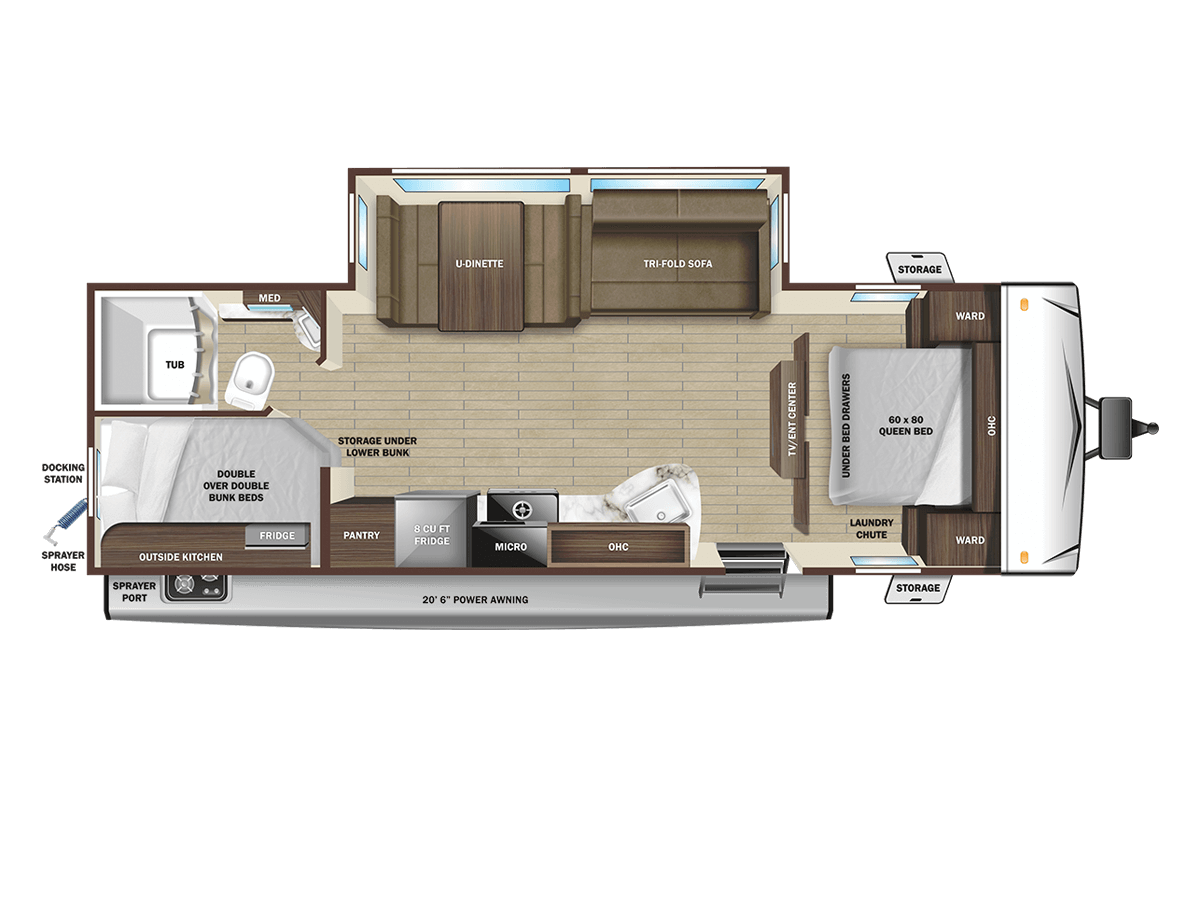

![261BH](/uploads/rvs/floorplans/997-261BH.png)
![Table and chairs](/uploads/rvs/overlays/146-overlay-261BH-table-chairs.png)

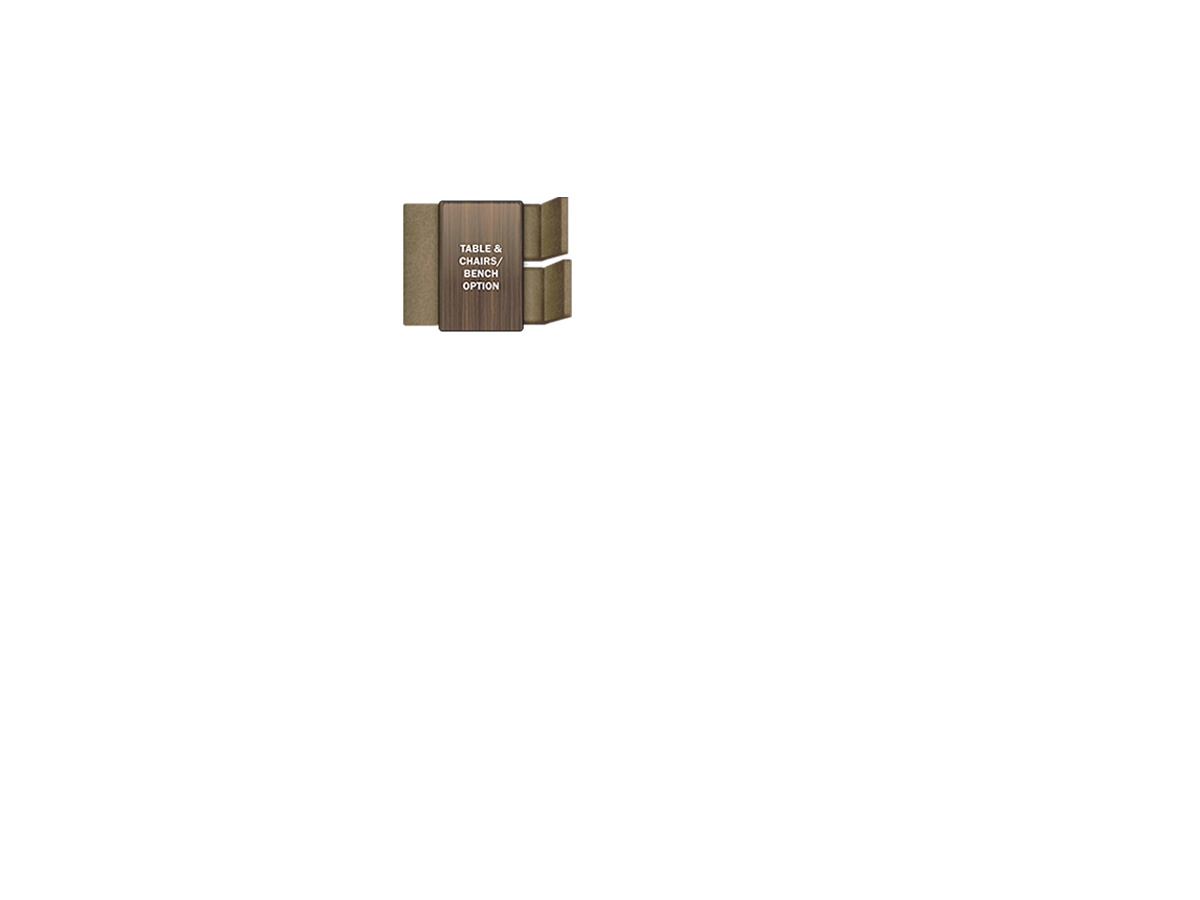

![Table, chairs and bench](/uploads/rvs/overlays/147-overlay-261BH-table-chairs-bench.png)

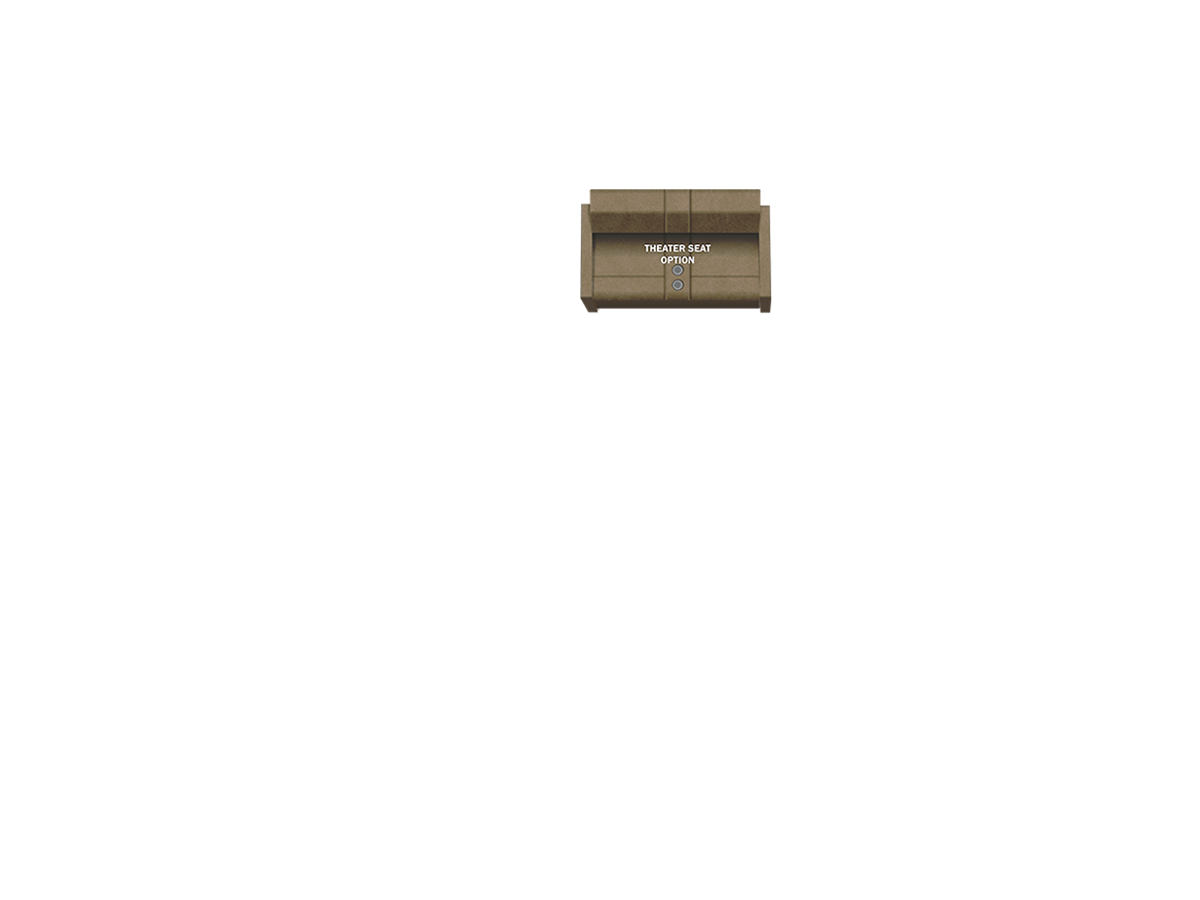

![Theater seating](/uploads/rvs/overlays/148-overlay-261BH-theater-seat.png)
Dry Hitch Weight (lbs) | 780 |
Unloaded Vehicle Weight (lbs) | 5,805 |
Cargo Carrying Capacity (lbs) | 1,695 |
Gross Vehicle Weight Rating (lbs) | 7,500 |
Exterior Length (overall) | 30' 10" |
Exterior Height | 10' 5" |
Exterior Height (with A/C) | 11' 0" |
Exterior Width | 8' 1" |
Exterior Width (with slides out) | 11' 3" |
Interior Height (main) | 6' 9" |
Awning Length | 20' 6" |
Fresh Water Capacity (gals) | 45.0 |
Gray Water Capacity (gals) | 29.0 |
Black Tank Capacity (gals) | 29.0 |
Propane Unit (lbs) | 60 |
Sleeps | up to 10 |
Water Heater | 6 |
# of outside storage compartments | 2 |
Tire Size | ST205/75R14'D |
